光栅尺主要用于机床加工数显、测量设备、位移控制等。光栅尺的名称又称为电子尺、光栅位移传感器、数显尺、直线位接传器等。上海鑫天光栅尺有多种型号：JCXE-W1 JCXE-N JCXE-F JCXE-M JCXE-B等多种型，输出信号为TTL 方波及RS422差分输出。咨询热线 ：021-54321756
光栅尺选型：
| 型号 | 测量长度mm | 分辨率mm | 电压V | 输出方式 |
| JCXE-W | 50 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 100 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 150 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 200 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 250 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 300 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 350 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 400 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 450 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 500 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 550 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 600 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 650 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 700 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 750 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 800 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 850 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 900 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 950 | 0.001,0.005 | 5V,24V | TTL,R422 |
| JCXE-W | 1000 | 0.001,0.005 | 5V,24V | TTL,R422 |
| 系列及量程 | 尺身型号 | 分辨率mm | 零位 | 电源电压 | 输出方式 | 数据线 | 输出信号 | 出线方式 |
| 缆长度 | ||||||||
| JCXE | W | 1=0.001 | N=无零位 | 5=5V | N=NPN | 03=3米 | T=TTL | DB9=(九芯插头) |
| F | C=中间零位 | 24=24V | P=PNP | 标准线长 | 4=(EIA-R422-A) | SC=无插头 | ||
| B | 5=0.005 | L左零位 | ||||||
| L | R=右零位 | |||||||
| M | ||||||||
| E | ||||||||
| G |
| 插头脚号 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 双方波信号含义 | 5V/24V | 0V | A | B | Z | A- | B- | Z- | 空 |
| 信号颜色 | 红 | 黑 | 蓝 | 绿 | 黄 | 棕 | 灰 | 白 | 空 |
| JCXE-W单方波接线定义如下： | |||||||||
| 插头脚号 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 单方波信号含义 | 5V/24V | 0V | A | B | Z | / | / | / | / |
| 信号颜色 | 红 | 黑 | 蓝 | 绿 | 黄 | / | / | / | / |
 |

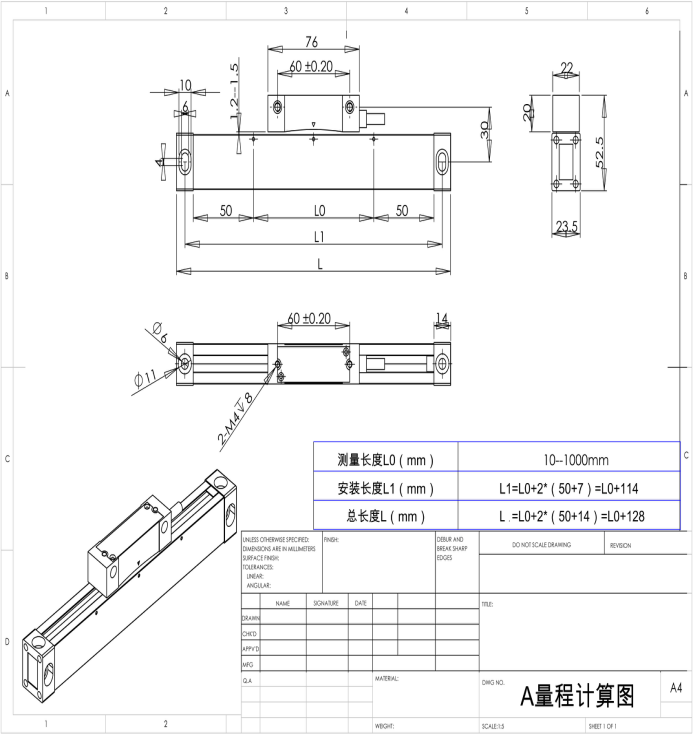

JCXE-W光栅尺安装说明书 |
